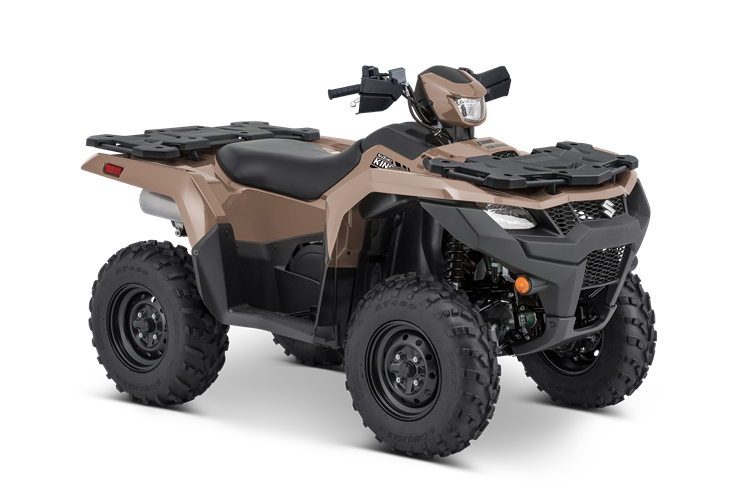

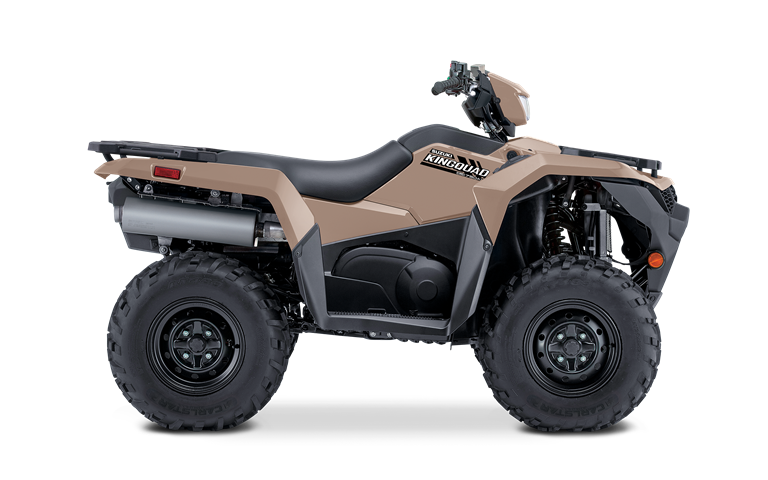

2025 KingQuad 750AXi Power Steering

2025 KingQuad 750AXi Power Steering Overview

The KingQuad 750AXi Power Steering is not just a new ATV, it's a KingQuad ATV.

Suzuki, the inventor of the 4-wheel ATV, has created the world's best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting, and is ready for you to join its history. The KingQuad 750AXi Power Steering helps tackle challenging terrain with the capabilities that only a KingQuad possesses.

Key Features

View Product Brochure

The 722cc, DOHC, single-cylinder, liquid-cooled, four-stroke engine delivers strong low- to mid-range torque and impressive peak horsepower. The four-valve cylinder head has large 36mm intake valves and straight ports for superb cylinder charging efficiency. A sportbike-derived chain-and-gear camshaft drive system helps create a compact engine.

The engine’s high-capacity oil pump delivers a strong flow of cooling oil to the piston oil jet system to help increase engine durability.

Advanced Suzuki Fuel Injection provides superb throttle response and fuel efficiency while delivering power consistently across the full rev-range. It also improves engine starting in all conditions.

The KingQuad easily achieves US emissions compliance, including California models that conform to the state’s stringent evaporative emissions standard and are eligible for California off-highway vehicle (OHV) registration.


The Quadmatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off to help reduce speed when riding downhill.

Carefully selected CVT spring and weight calibration provides smooth and strong acceleration from stops and matches the engine’s performance to the chassis’ high towing capacity. A compact torque-sensing limited-slip front differential offers potent traction plus light steering. A differential-lock system provides serious 4WD traction.

The CVT tuning provides controlled engine braking to boost rider confidence and comfort during downhill riding.

Handlebar-mounted push-button controls permit easy selection between 2WD, 4WD, and differential-lock 4WD. An override button on the left handlebar can be used to override the normal speed limiter when getting out of mud.


Independent double A-arm front suspension (6.7 inches of wheel travel) and the fully independent, A-arm/I-beam rear suspension (7.7 inches of wheel travel) use four large diameter, gas-charged shock absorbers with five-way spring preload adjustment.

To increase rider comfort, make the ATV easier to ride, and increase towing capacity, the KingQuad’s frame has thick-wall frame tubes and reinforced brackets in key areas.

The sealed, multi-plate rear brake system’s foot brake lever ratio helps provide consistent performance. The rear brake’s clutch-type design is highly durable, has reduced unsprung weight, and minimal maintenance requirements.

High traction 25-inch Carlisle® tires are mounted on strong steel wheels with a durable, powder-coated matte black finish.


The multi-function instrument panel has excellent appearance and visibility and provides service reminders based on running time or mileage. The instrumentation includes LCD readouts for the speedometer, odometer, twin trip meter, hour meter, clock, fuel level, riding range, and drive mode. There are LED indicators for high, low, neutral, reverse, 2WD/4WD, and differential-locked 4WD and LED cautions for fuel injection and engine temperature.

The 35-watt handlebar-mounted headlight illuminates the trail in the direction you are steering the ATV. Dual 35-watt headlights (with high- and low-beam settings) are part of the KingQuad’s distinctive bodywork.

A high-output, three-phase charging system feeds an 18-amp maintenance-free battery for abundant power for easy starting and accessory use. A sealed 12V accessory outlet is standard.

Winch-ready mounts and wire conduit make winch installation simple.


Available in Flame Red, Terra Green, or Desert Beige, the bold, angular bodywork features high-clearance fenders that offer great protection for the rider. Refined panels simplify maintenance needs, such as oil level checks and fuel and air filter service.

Polyethylene skid plates provide protection with minimal resistance over rocks and rough terrain. Durable plastic guards protect the front and rear half shafts.

The handguards (knuckle covers) help protect the rider’s hands from the elements and are styled to match the KingQuad’s bodywork.

The receiver-type trailer hitch mount makes it easy to select the type of equipment you want to move with the KingQuad’s higher towing capacity (up to 1322 pounds). Including a ball mount, hitch pin, and R-clip making it easy to setup your ATV for towing (a trailer ball or hook is not included).


Suzuki’s 24-month limited warranty is much longer than other ATV warranties. Longer coverage and other benefits are available through Suzuki Extended Protection (SEP).

A variety of Genuine Suzuki Accessories are available, including winches, windshield, front and rear bumpers, quick-release snowplow, aluminum skid pans, rack extensions, utility box, and more.

Minimum rider age: 16 years old


Specifications

  • Engine722cc (44.1 cubic in.), 4-stroke, liquid-cooled, 4-valve, DOHC single cylinder
  • Bore x Stroke104.0 mm x 85.0 mm (4.094 in. x 3.346 in.)
  • Compression Ratio9.9:1
  • Fuel SystemSuzuki electronic fuel injection
  • StarterElectric
  • LubricationWet sump
  • TransmissionAutomatic variable ratio (V-belt), with high/low-range, and reverse
  • ClutchDry shoe, automatic, centrifugal type
  • Driven Wheels2WD, 4WD and 4WD Differential Lock
  • Final DriveShaft drive
  • Suspension FrontIndependent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
  • Suspension RearIndependent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
  • Brakes FrontDisc brakes, twin rotors
  • Brakes RearSealed oil-bathed multi-disc
  • Tires FrontAT25 x 8-12**, tubeless type x 2
  • Tires RearAT25 x 10-12**, tubeless type x 2
  • Fuel Tank Capacity17.5 L (4.6 US gal.)
  • ColorTerra Green, Flame Red, or Desert Beige
  • IgnitionElectronic ignition (transistorized)
  • Headlight12V 35/35W x 2 fender-mounted, 12V 35W x 1 handlebar-mounted
  • Tail LightLED
  • Overall Length2150 mm (84.6 in.)
  • Overall Width1215 mm (47.8 in.)
  • Overall Height1285 mm (50.6 in.)
  • Wheelbase1285 mm (50.6 in.)
  • Ground Clearance260 mm (10.2 in.)
  • Seat Height920 mm (36.2 in.)
  • Curb Weight329 kg (725 lb.), 330 kg (728 lb.) CA model
  • Warranty24-month limited warranty
  • ExtensionLonger coverage periods with other benefits are available through Suzuki Extended Protection (SEP)
