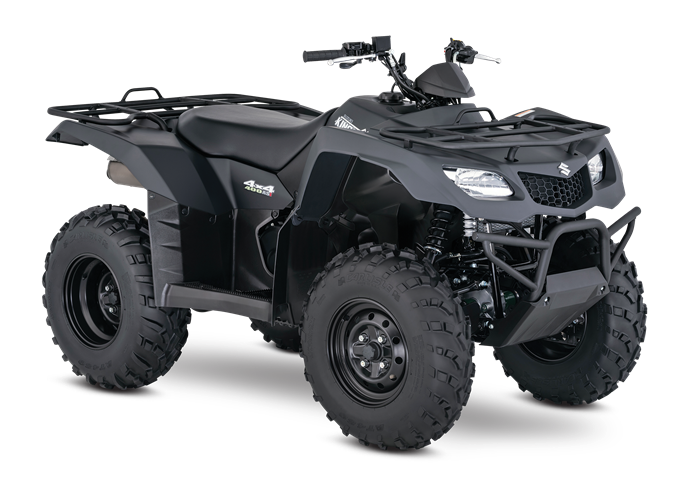

2018 KingQuad 400ASi Special Edition
2018 KingQuad 400ASi Special Edition Overview
In 1983, Suzuki introduced the world's first 4-wheel ATV. Today, Suzuki ATVs are everywhere. From the most remote areas to the most everyday tasks, you'll find the KingQuad powering a rider onward. Across the board, our KingQuad lineup is an exceptional group of ATVs.
Whether you’re working hard or getting away from it all, the 2018 Suzuki KingQuad 400ASi helps you every step of the way. The fully automatic Quadmatic transmission has two and four-wheel drive modes to handle rough trail conditions while completing even the most demanding chores. Along with exceptional engine...
There was an error loading these images. please try again later!
Powerful fuel-injected, four-stroke engine is easy on gas
Large fuel tank & plush seat delivers extended, comfortable riding range
Fender-mounted shifter controls the QuadmaticTM transmission
Select 2WD or 4WD via a handlebar-mounted lever
Special Edition bodywork has a durable, matte black finish
The KingQuad 400ASi’s fuel-injected 376cc four-stroke, four-valve engine produces efficient power and driveablity.
Suzuki's class-leading fuel injection smooth’s power output, especially in the mid-to-high range, and provides excellent cold starting. The system uses 3-D maps for optimum ignition, creating responsive yet environmentally compliant performance.
Suzuki Advanced Cooling System (SACS) uses an oil cooler and thermostat-controlled cooling fan to shed engine heat during hard work or cargo hauling.
Push-button electric starting has a start-in-gear function allowing starting without shifting to neutral (as conditions permit).
The Engine Control Unit (ECU) has slip control logic, which adjusts fuel injector duration and timing to improve drivability and grip in loose/slippery conditions.
Highly efficient iridium spark plug contributes to better combustion, cleaner emissions and longer plug life. Engine starting under low temperature is also improved.
Pulsed-secondary AIR-injection (PAIR) system and catalyst-equipped exhaust system help the ATV meet emission standards while maintaining a high level of performance.
The QuadmaticTM transmission is a fully automatic, CVT (Continuously Variable Transmission) with selectable high-low sub-transmission and reverse for maximum traction and fuel efficiency.
Automotive gate-type gearshift lever lets you conveniently choose high- or low-range, neutral or reverse.
Select two- or four-wheel drive with the flip of a handlebar-mounted lever. The shaft drive system is reliable and durable, and is nearly maintenance-free.
Torque-sensing limited-slip front differential provides maximum traction and light steering when in 4WD mode.
An advanced engine-braking system minimizes free-wheeling with the throttle off to help control the ATV during steep descents.
The ECU has a Reverse Mode that monitors vehicle speed so higher engine RPM can be used when getting out of mud or loose soil in reverse mode.
Sporty bodywork features sharply angled, high-clearance fenders.
Suzuki's plush T-shaped seat delivers rider mobility during sport or difficult terrain riding. Overall length is under 82 inches (208 cm) so the KingQuad fits into a 6.5-foot truck bed for easy transportation.
Independent front A-arm suspension offers smooth performance and remarkable ground clearance with 6.7 inches (170.1 mm) of wheel travel.
A swingarm rear-suspension with 6.7 inches (170.1 mm) of wheel travel and twin shock absorbers provides agile handling and plush ride.
Dual front hydraulic disc brakes feature calipers with large 34mm pistons and wide brake-pad surface area for increased stopping power and outstanding durability.
Large, 25-inch CARLISLE tires with aggressive tread offers consistent traction in wet conditions, yet has a quiet, smooth ride on hard-packed trails.
Lightweight and strong plastic skid plates, sturdy to withstand trail pounding yet slippery to let obstacles slide below.
Dual 35W headlights (with high and low settings) are part of the distinctive KINGQUAD grille appearance. Bright tail light helps make the ATV visible in dark conditions.
Heavy-duty front and rear cargo racks let you take advantage of the ATV’s superb load capabilities. Wrinkle paint finish on the racks and front bumper is durable and scratch resistance.
LCD instrumentation includes speedometer, odometer, tripmeter, hour meter, clock, fuel gauge and indicators for reverse, neutral, oil and FI.
Automotive-style DC power outlet on front fender.
Winch-ready mounts and wire conduit makes winch installation simple.
Large 4.2-gallon (15.9 L) fuel tank provides outstanding riding range.
Full floorboards with integrated raised footpegs provide protection.
A variety of Suzuki Genuine Accessories are available, including winches, windshield, front and rear bumpers, snow plow, aluminum skid pans, rack extensions, utility box and more.
12-month unlimited mileage limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).**Subject to separate coverage for certain parts and the exclusions and limitations described in the New ATV Limited Warranty.
Minimum Operator Age: 16 Years Old
- Engine376cc (22.94 cubic in.), four-stroke, air-cooled with SACS, OHC single cylinder
- Bore x Stroke82.0 mm x 71.2 mm (3.228 in. x 2.803 in.)
- Compression Ratio9.0:1
- Fuel SystemSuzuki electronic fuel injection
- LubricationWet Sump
- TransmissionAutomatic variable ratio (V-belt), with high/low-range, and reverse
- ClutchDry shoe, automatic, centrifugal type
- Driven Wheels2WD & 4WD
- Final DriveShaft drive
- Suspension FrontIndependent, double wishbone, coil spring, oil damped
- Suspension RearSwingarm type, coil spring, oil damped
- Brakes FrontDisc brakes, twin rotors
- Brakes RearSingle drum brake
- Tires FrontAT25 x 8-12, tubeless type x 2
- Tires RearAT25 x 10-12, tubeless type x 2
- Fuel Tank Capacity4.2 US gal. (16.0 L)
- ColorSolid Matte Sword Black
- IgnitionElectronic ignition (transistorized)
- Headlight12V 35/35W (HS1) x 2
- Tail Light12V 21/5W
- Overall Length81.1 in. (2060 mm)
- Overall Width45.1 in. (1145 mm)
- Overall Height48.0 in. (1220 mm)
- Wheelbase50.0 in. (1270 mm)
- Ground Clearance9.8 in. (250 mm)
- Seat Height33.1 in. (840 mm)
- Curb Weight628 lbs. (265 kg.)
- Warranty12 month unlimited mileage limited warranty
- ExtensionCoverage extension and additional benefits are available
