2019 DR-Z400SM Overview
Suzuki's SuperMoto DR-Z400SM is based on the proven DR-Z400S. So it combines Supermotard style and features in a narrow, lightweight, street-legal package. This bike brings off-road soul and fun to paved roads. It's not uncommon to take the SuperMoto down a twisty forest road, around tight canyon corners, or through commuter traffic.
Its 398cc, liquid-cooled, four-stroke engine provides strong low-rpm torque and crisp throttle response for any of these occasions. Key differences between the DR-Z400SM and the DR-Z400S are the inverted front fork, wide, spoke-style wheels, and...
There was an error loading these images. please try again later!

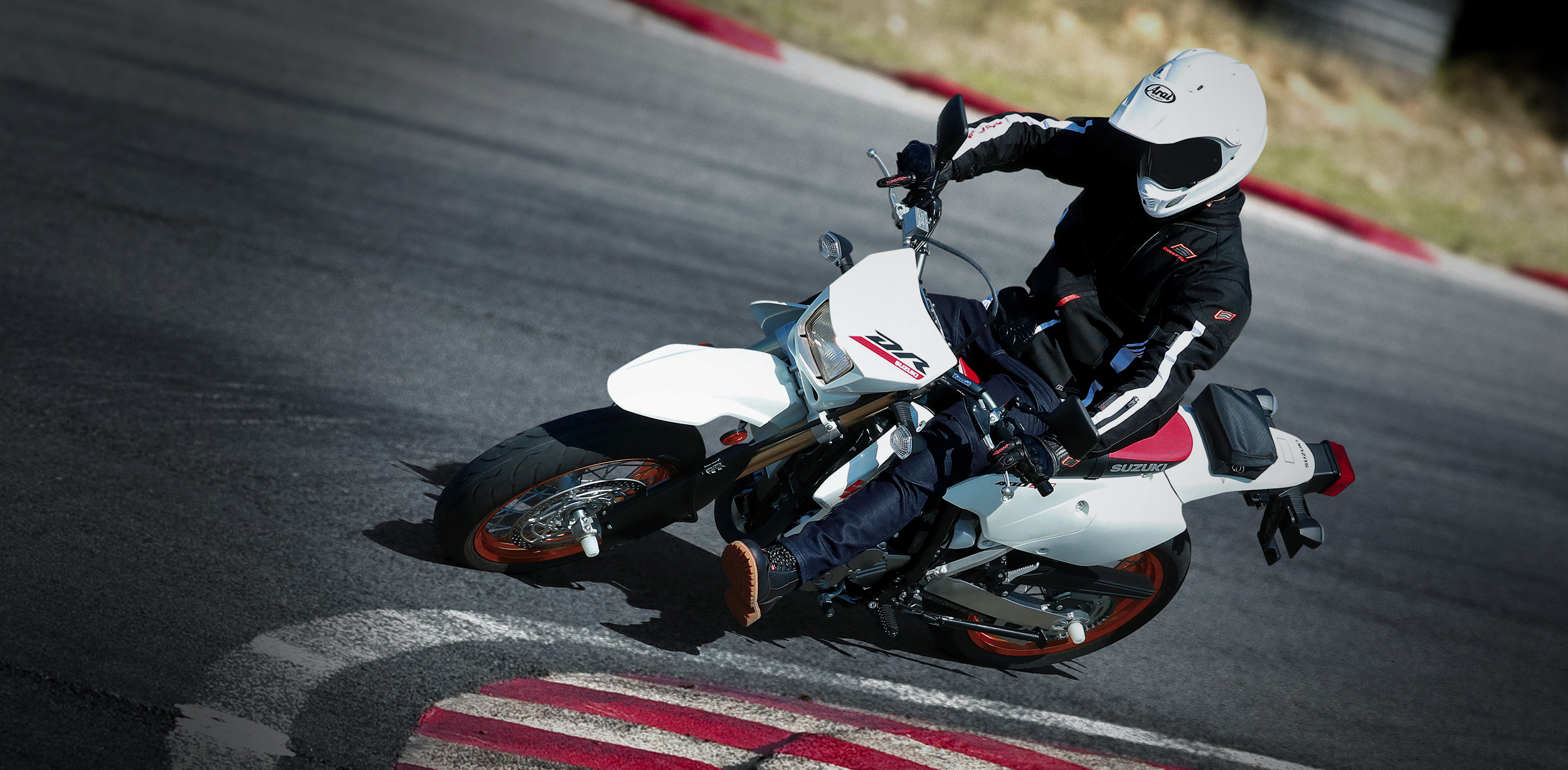

Suzuki's Supermotard model, based on the proven DR-Z400S, combines Supermotard style and features in a narrow, lightweight, street-legal package
Versatile and strong, 398cc, DOHC, liquid-cooled, dry-sump engine has push-button starting
SuperMoto boasts fully adjustable suspension and strong spoke wheels featuring high-grip sportbike tires on wide aluminum rims
White bodywork with red or blue accent graphics complement the motorcycle’s styling
The white and red DR-Z400SM features bright, gold anodized Excel wheel rims, while the white and blue bike features blue anodized rims that stylishly exude performance
Lightweight, 398cc, DOHC, liquid-cooled, dry-sump engine produces strong, tractable power.
Compact, four-valve cylinder head has 36mm intake valves, 29mm exhaust valves, narrow 28-degree included valve angle, and shim-under-bucket valve adjustment system.
Simple electric starting is powered via a lightweight starter motor with an automatic mechanical decompression system.
SCEM-plated cylinder (nickel-silicon-phosphorus) is lighter and more durable than an iron liner and has excellent heat transfer properties.
Forged aluminum piston is 10 percent lighter than a cast piston and receives additional oil-cooling through a crankcase oil jet.
A refined Mikuni 36mm carburetor, with new deceleration enricher circuit, is fed by a six-liter airbox to provide smooth throttle response when accelerating or engine braking.
The left side body cover has quick-release fasteners for easy access to the air filter.
The addition of a PAIR (air supply) system to the exhaust helps the motorcycle achieve emissions compliance without affecting performance.
Thermostatically-controlled cooling fan mounted to the left radiator helps maintain consistent operating temperature in traffic.
Magnesium valve cover, clutch cover, and magneto cover provide additional weight savings.
Compact, five-speed transmission utilizes a cable-operated clutch with a separate magnesium outer cover for simplified clutch maintenance.
Low-maintenance, long-life, sealed O-ring type drive chain produces minimal sounds when riding.
Wide, blue or gold anodized RK Excel aluminum rims with stainless steel spokes are fitted with sporty radial tires: 120/70-R17 front and 140/70-R17 rear.
Strong braking performance is supplied by a front disc brake with a large 300mm floating-type rotor and dual-piston caliper, plus a 240mm rear disc brake with single-piston caliper.
Long travel, Showa inverted front fork is derived from a RM250 and features adjustable compression/rebound damping and alumite coating on inner tube surfaces for smooth action.
A fully adjustable rear shock absorber with high/low speed compression damping adjuster and a tapered RM-inspired aluminum swingarm combine for precise rear wheel control.
Renthal tapered aluminum handlebar has an aggressive look, reduces vibration, and has a great bend for spirited riding.
Chrome-moly steel frame tuned for Supermotard style riding is torsionally strong with minimal weight. The backbone tube, front down tube, and steering head gussets form the dry-sump engine oil tank.
A bolt-on aluminum sub-frame helps reduce weight, simplify maintenance, and contribute to the trim rear fender appearance.
Front and rear axle sliders help protect against damage in the case of a tip-over.
Compact, digital instrument cluster includes speedometer, odometer, and twin-trip meters with addition/subtraction capability, clock, and stopwatch functions.
On-road legal lighting includes bright 60/55-watt halogen headlight, compact tail/stoplight, lightweight, rubber-mounted turn signals, and horn.
Electrical systems, including the easy-push button starter, are powered by a compact, 6.5-amp, maintenance-free battery.
12-month unlimited mileage limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).**Subject to separate coverage for certain parts and the exclusions and limitations described in the New On-Road Motorcycle Limited Warranty.
A variety of Genuine Suzuki Accessories for DR-Z400SM owners are available, including a low-profile seat, cargo rack, handguard set, and a large selection of Suzuki logo apparel.
- Engine398cc, 4-stroke, liquid-cooled, single cylinder, DOHC
- Bore x Stroke90.0 mm x 62.6 mm (3.54 in. x 2.44 in.)
- Compression Ratio11.3:1
- Fuel SystemMikuni BSR36, single carburetor
- LubricationSemi-dry sump
- Transmission5-speed constant mesh
- ClutchWet multi-plate
- Final DriveChain, RK520KZ0, 110 links
- Suspension FrontInverted telescopic, coil spring, oil damped, adjustable damping force
- Suspension RearLink type, coil spring, oil damped, adjustable spring preload and damping force
- Brakes FrontDisc brake, single floating rotor
- Brakes RearDisc brake, single rotor
- Tires Front120/70 R17 M/C 58H, tube type
- Tires Rear140/70 R17 M/C 66H, tube type
- Fuel Tank Capacity10.0 L (2.6 US gal.), 9.5 L (2.5 US gal.) CA model
- ColorSolid Special White No. 2 with Red or Solid Special White No. 2 with Blue
- IgnitionElectronic ignition (CDI)
- Spark PlugNGK CR8E or DENSO U24ESR-N
- Headlight12V 60/55W (H4)
- Tail Light12V 21/5W
- Overall Length2225 mm (87.6 in.)
- Overall Width855 mm (33.7 in.)
- Overall Height1200 mm (47.2 in.)
- Wheelbase1460 mm (57.5 in.)
- Ground Clearance260 mm (10.2 in.)
- Seat Height890 mm (35.0 in.)
- Curb Weight146 kg (322 lb.)
- Warranty12-month unlimited mileage limited warranty
- ExtensionLonger coverage periods with other benefits available through Suzuki Extended Protection (SEP)
