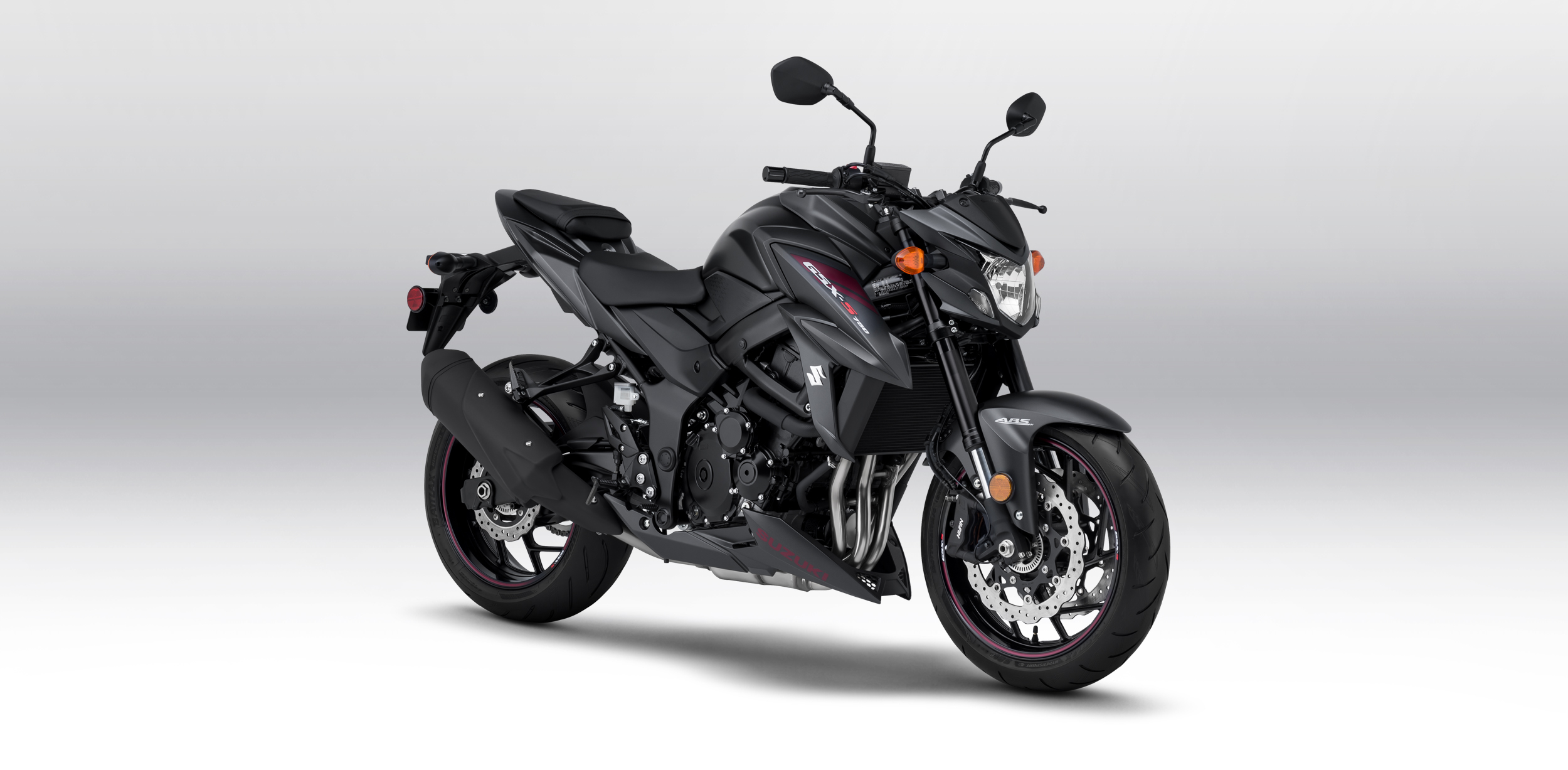

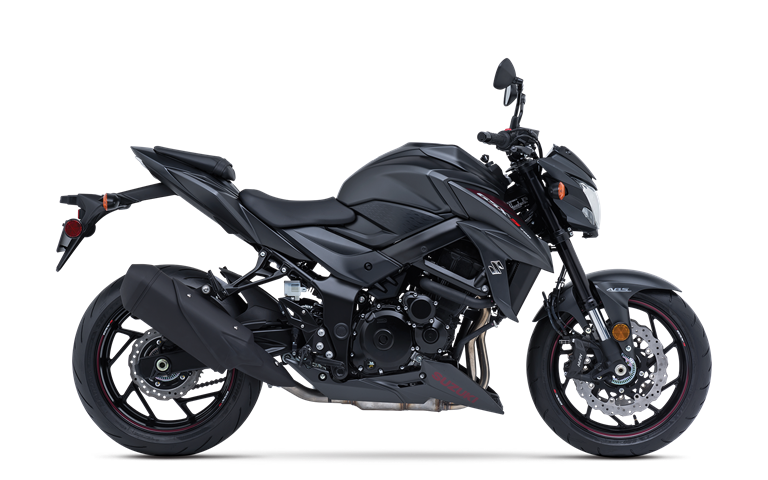

2018 GSX-S750Z

2018 GSX-S750Z Overview

The GSX-S750 brings significant engine and chassis advancements to firmly establish itself as the second model in Suzuki's innovative line-up of performance street machines. Similar to the GSX-S1000, the GSX-S750 inherits its heart and soul from Suzuki's MotoGP race experience and the 30-year heritage of the GSX-R750.

It's the perfect sportbike response to the craving of today's discriminating riders. The GSX-S750 looks better and outperforms its popular predecessor; and other entries in the class. It is nimble, comfortable, and an exhilarating, fun ride. With boosted engine...

Features

New fuel-injected, 749cc, 4-cylinder engine uses GSX-R architecture to deliver a torque-rich sportbike experience.

Suzuki Advanced Traction Control* lets the rider select sensitivity to match road conditions.

The unique chassis integrates the best qualities of a tubular streetbike frame and a twin-spar sportbike frame, and is fitted with KYB suspension to provide precise handling.

Supported by the Suzuki Anti-lock Brake System**, the new front Nissin Monobloc brake calipers and twin, wave style brake rotors bring strong and consistent braking performance.

Aggressive blacked-out styling, with cues from the renowned GSX-S1000, surround an ergonomically comfortable, yet sporty riding position.

*The Traction Control System is not a substitute for the rider's throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Neither can it prevent the front wheel from losing grip.

**Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please ride carefully and do not overly rely on ABS.


Potent 749cc 4-cylinder fuel-injected engine uses 2005 GSX-R750 architecture so the power delivery is an excellent bled of strong low-end and a muscular top end.

Using the K5 generation GSX-R engine architecture also permits a shorter chassis which greatly enhances handling. This also makes the GSX-S750 the only motorcycle in its class with an engine with SuperSport lineage.

Ventilation holes are added to the bottom side of each cylinder in the GSX-S750’s crankcase. The holes reduce pumping loss to help produce power and gain fuel economy.

Camshafts tuned specifically for the GSX-S750 deliver a dynamic wave of smooth torque and strong acceleration.

Throttle bodies with Suzuki Dual Throttle Valve (SDTV) system contribute to better throttle response and torque at the low-to-mid RPM range, while still producing peak performance.

Ten-hole, long-nose fuel injectors deliver finer atomized fuel to increase combustion efficiency.

Suzuki’s patented, Throttle-body Integrated Idle Speed Control (TI-ISC) stabilizes the engine idle speed and helps lower emissions. The system is compact and lightweight.

The TI-ISC on the GSX-S750 has Suzuki’s Low RPM Assist feature that seamlessly adjusts engine speed during take-off and low-speed riding to smooth the power delivery and to help reduce the possibility of the rider stalling the motorcycle.

A large capacity air box is required to match the higher engine output. The air inlets have been designed to provide an exciting auditory experience.

The Engine Control Module (ECM) provides state-of-the-art engine management and has enhanced settings to suit the intake and exhaust systems, resulting in linear throttle response and class-leading fuel economy.

Suzuki’s Advanced Traction Control System* lets the GSX-S750 rider control the throttle with more confidence in various riding conditions. As a result, the rider can enjoy sport riding with less anxiety. There are four traction control modes (1, 2, 3, and OFF) that the rider can easily adjust at rest or on-the-fly via a handlebar-mounted control. The difference between the modes are their sensitivity to road conditions.

- Mode 1 is lowest sensitivity level most suitable for skilled riders or in conditions that have good road surface grip (sport riding on good, smooth roads).

- Mode 2 is a moderate sensitivity level that is suitable for most riders or in conditions that have varied road surface grip (city riding, regular road conditions).

- Mode 3 is highest sensitivity level suitable for road conditions where the grip may be limited (wet or cold surfaces).

- OFF disengages all traction control features.

The digital ignition fires iridium type spark plugs that increase spark strength and combustion efficiency, contributing to higher power, more linear throttle response, easier engine start-up, and a more stable idle. These quality components also last longer than conventional spark plugs.

A fresh-design stainless-steel, 4-2-1 exhaust system helps the engine deliver a strong low-to-mid range punch with an exciting rush to redline. A larger catalyzer is in the mid-pipe to assist in emissions control without sacrificing performance.

Angular radiator shrouds efficiently guide cooling air to the high-capacity radiator. Additional heat is removed from the engine via the use of a lightweight and compact liquid-cooled oil cooler (like those used on GSX-R models).

*The Traction Control System is not a substitute for the rider's throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Neither can it prevent the front wheel from losing grip.


The race-proven six-speed close-ratio transmission features vertically staggered shafts to reduce overall engine length.

The shorter final gear ratio enables the new GSX-S750Z accelerate quicker than the prior model while the additional engine power maintains the same top speed potential.

Large diameter, wet multi-plate clutch is derived from a GSX-R750 design to easily transmit power while the rack and pinion clutch release provides the rider with superb friction-point feel.

The refined shift linkage helps the rider easily and quickly select the best gear for the riding conditions.

The strong drive chain uses O-rings to preserve internal lubrication so power is transmitted smoothly and quietly.


With styling influenced by the GSX-S1000, but with its own aggressive turn, the GSX-S750z’s new bodywork looks wild and forceful, yet keeps the rider comfortable at all times.

The headlight nacelle houses provides a visual focal point while the under cowl connects the chassis styling to the engine and new exhaust system.

Frame design combines the advantages of a compact tubular-style street bike frame and a twin-spar sportbike frame to deliver a dynamic ride. A reasonable sport riding position is created by a carefully crafted relationship between the handlebars, footrests and seat.

Large-diameter, matter-black tapered handlebars damp vibration while adding style and good control leverage for the rider.

The low seat height of 820 mm (32.2 in.) contributes to the sporty, yet upright riding position and aids rider confidence at stops.

Four-piston Nissin Monobloc brake calipers squeeze twin, 310mm wave style brake rotors up front with a single-piston rear caliper out back to help deliver controlled stops.

Both the front and rear brakes can be modulated by a compact Anti-lock Brake System (ABS)** controller to match stopping force to the available traction.

Inverted, black-anodized KYB fork features a spring preload-adjustable design which provides a solid foundation for the radial mount brake calipers.

Trapezoidal, beam-type swingarm tapers down to chain adjusters adding strength and style.

Link-type rear suspension, with a single shock absorber working through a progressive linkage, has 7-way adjustable spring preload.

Ten-spoke cast aluminum wheels from TPR hold Bridgestone Battleax Hypersport S21 radial tires that deliver increased grip and stability.

Black finish, aluminum hand and foot controls provide excellent action and contribute to the motorcycle’s sporty style.

**Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please ride carefully and do not overly rely on ABS.


The GSX-S750Z is equipped with Suzuki’s Easy-start System that requires just a simple touch of the starter button to fire up the engine (without pulling the clutch lever if the transmission is in neutral).

Distinctively shaped headlight nacelle contains a bright 60/55W H4 halogen bulb. The tail section houses an integrated LED taillight with a dual-pane, red/clear lens.

Similar to the GSX-S1000, the new lightweight and compact instrument panel uses a LCD display that includes speedometer, tachometer, odometer, dual tripmeters, gear position, coolant temperatures, driving range, average fuel consumption, instantaneous fuel consumption, traction control, and a clock functions.

The display has an adjustable intensity, white-color backlight for great nighttime visibility and is flanked by LED indicators for the turn signals, high beam, malfunction, traction control, ABS, plus coolant temperature and oil pressure alerts.

A three-phase charging system, with an oil-cooled stator, keeps the maintenance-free battery up to charge for trouble-free operation.


A variety of Genuine Suzuki Accessories are available for the GSX-S750, such as a solo seat cowl and sport screen, plus a large selection of logo apparel.

12-month unlimited mileage limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).*

*Subject to separate coverage for certain parts and the exclusions and limitations described in the New On-Road Motorcycle Limited Warranty.


Specifications

  • Engine749 cc, 4-stroke, liquid-cooled, 4-cylinder, DOHC
  • Bore x Stroke72.0 mm (2.83 in) x 46.0 mm (1.81 in)
  • Compression Ratio12.3 : 1
  • Fuel SystemSuzuki Fuel Injection with SDTV
  • StarterElectric
  • LubricationWet sump
  • ClutchWet, multi-plate type
  • Transmission6-speed constant mesh
  • Suspension FrontInverted telescopic, coil spring, oil damped
  • Suspension RearLink type, single shock, coil spring, oil damped
  • Brakes FrontNissin, 4-piston, Disc, twin
  • Brakes RearNissin, 1-piston, Disc single
  • Tires Front120/70ZR17M/C (58W), tubeless
  • Tires Rear180/55ZR17M/C (73W), tubeless
  • Fuel Tank Capacity16.0 L (4.22 US gallons)
  • ColorMetallic Mat Black No.2
  • IgnitionElectronic ignition (Transistorized)
  • Headlight12V 60/55W H4
  • Tail LightLED
  • Overall Length2125 mm (83.6 in.)
  • Overall Width785 mm (30.9 in)
  • Wheelbase1455 mm (57.2 in.)
  • Ground Clearance135 mm (5.3 in.)
  • Seat Height820 mm (32.2 in.)
  • Curb Weight213 kg (469 lbs.)
  • Warranty12-month unlimited mileage limited warranty. Coverage extension and additional benefits are available.
